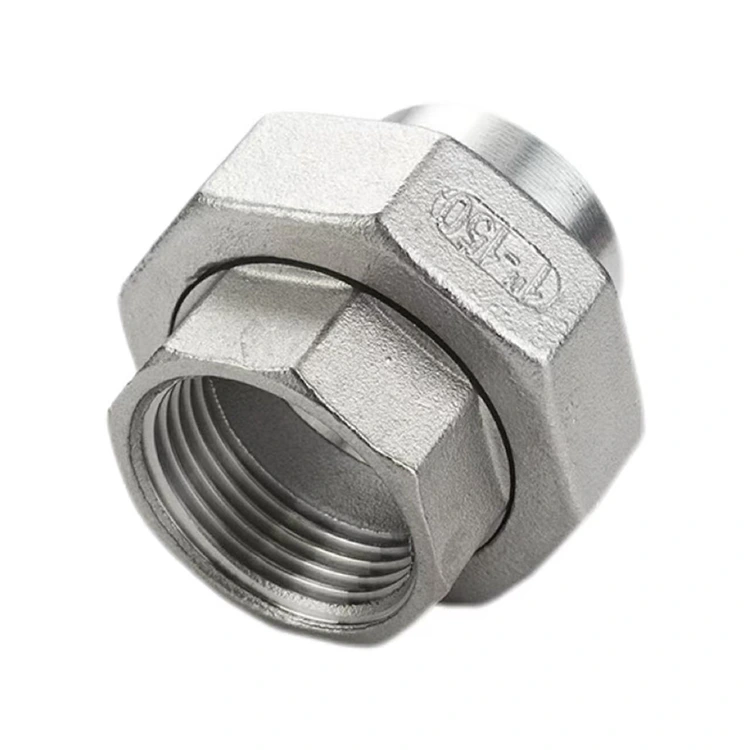

I-Female Thread x Butt-Weld Union

Njengomkhiqizi ochwepheshe wokufakwa kwamapayipi e-China, i-Shenchi yethula i-Female Thread x Butt-Weld Union—isixhumi esiyinhlanganisela sepayipi esihlanganisa ngaphandle komthungo isiphetho esinomucu wesifazane nesiphetho se-butt-weld ngaphakathi kweyunithi eyodwa.

Njengokulingana okusebenza okuphezulu, umsebenzi oyinhloko weNyunyana Yezintambo Zowesifazane x Butt-Weld usekuqondiseni isixhumi esibonakalayo esingenazihibe phakathi kwamasistimu oxhumano oluluchungechunge namasistimu wamapayipi ashiselwe. Isiphetho esinemicu yabesifazane senziwa ngokunemba kusetshenziswa ubuchwepheshe be-CNC obuthuthukisiwe, okuqinisekisa amaphrofayili entambo anembile kanye nokubekwa uphawu okuthembekile; ivumela ukuxhumana okuqondile kumadivayisi anentambo yangaphandle njengama-valve, ompompi, nezinsimbi.

Isiphetho se-butt-weld sine-bevel esanda mshini (i-chamfer) eklanyelwe ukuthi ihlanganiswe ngqo epayipini nge-TIG (argon arc) yokushisela, okwenza uphawu olungapheli, olungavuzi. Yakhiwe ngensimbi engagqwali yekhwalithi ephezulu noma ithusi, le nyunyana ilinganiselwe ingcindezi yokusebenza engaphezu kuka-1.6 MPa futhi isebenza ngaphakathi kwebanga lokushisa elingu-20°C kuya ku-120°C. Isetshenziswa kabanzi kumaphrojekthi amasha wokwakha ukuze kuxhunywe amapayipi amakhulu ashiselwe nemigqa yegatsha enentambo, kanye nakumaphrojekthi okuvuselela ukuze kuxhunywe amasistimu ashiselwe ngemishini ecushiwe. Ngamakhono ayo okusebenza okuphezulu, inikeza isisombululo esilula kodwa esithembekile sezinselele eziyinkimbinkimbi zokuxhuma amapayipi.

Imininingwane Yomkhiqizo

Isakhiwo Esiyinhloko kanye Nokugqama Kwedizayini

1. Isakhiwo Esihlanganisiwe Esihlanganisiwe

I-Shenchi Female Thread x Butt-Weld Union inomklamo omusha wesakhiwo esiyinhlanganisela, ohlanganisa ngokunembile isiphetho esiluchungechunge sowesifazane kanye nesiphetho se-butt-weld ngaphakathi komzimba owodwa. Lokhu kuqeda inkimbinkimbi ehambisana nokusebenzisa ukufakwa kwe-adaptha eminingi futhi kunciphisa kakhulu amaphuzu avuzayo angenzeka. Umkhiqizo wakhiwa ngesinyathelo esisodwa sokubumba inqubo, okuholela ekwakhiweni kwempahla eminyene namandla aphezulu emishini.

2. Precision Internal Threading

Ukuphela kwentambo yesifazane kwenziwa ngomshini kusetshenziswa imishini ye-CNC enembayo ephezulu; iphrofayili yochungechunge isezingeni, futhi ukusebenzelana kuqinile, kuhlangabezana ngokugcwele nezindinganiso zamazwe ngamazwe Ezinyunyana Zochungechunge Lwesifazane x Izinqe-Weld. Ukucaciswa kochungechunge kuhlanganisa i-BSPP, i-BSPT, i-NPT, namazinga we-metric, okuqinisekisa ukuhambisana okuphelele nezinhlobonhlobo zokufakwa kwamapayipi anocucu wesilisa kanye nemishini, yasekhaya neyamazwe ngamazwe.

3. Idizayini Yokuphela Kwe-Butt-Weld Elungiselelwe

Isiphetho se-butt-weld sine-bevel ejwayelekile esanda mshini (i-chamfer), esusa isidingo sokulungiswa kwesibili endaweni ngesikhathi sokufakwa. Uma ixhunywe kumapayipi nge-TIG yokushisela, ijoyinti le-weld lizuza amandla alingana nalawo ezinto eziyisisekelo, okwenza isistimu yamapayipi ehlala njalo, ebalulekile. Ugqinsi lwamapayipi luthuthukisiwe ukuze kuqinisekiswe ubuqotho bokushisela kanye nokubamba kalula.

4. Isakhiwo seNyunyana Ephakathi

Umkhiqizo uhlanganisa ukwakheka kwenyunyana emaphakathi ekhiphekayo, ehlanganisa uxhumo olunentambo enembayo kanye ne-gasket yokuvala yekhwalithi ephezulu. Lo mklamo uqinisekisa ukuguquguquka ngesikhathi sokufakwa ngenkathi kusiza ukugcinwa kwesikhathi esizayo. Ukuze kuhlolwe noma kulungiswe, ipayipi linganqanyulwa ngokukhulula inyunyana emaphakathi, ngaleyo ndlela kugwenywe isidingo sokusika noma ukushisela kabusha amalunga amapayipi. II. Ukucushwa Kwengxenye Ebalulekile

I-Shenchi Female Thread x Butt-Weld Union iqukethe izingxenye ezibalulekile ezilandelayo:

Umzimba: Wakhiwe ngekhwalithi ephezulu engu-304 yensimbi engagqwali noma ithusi, enziwe ngokunemba ngesiqephu esisodwa.

I-Union Nut: Yenziwe ngezinto eziqine kakhulu ezinomuthi oqeda ukugqwala; yakhelwe ukuvimbela ukukhumula intambo ngisho nangemva kokuhlanganisa okuphindaphindiwe nokuhlakazwa.

I-Seal Gasket: Ihlanganiswe nerabha ekhethekile ukumelana nokushisa okuphezulu nokuguga; ishumekwe ngaphakathi kwendawo evalekile ukuze kuqinisekiswe ukuvala ngokuzenzakalelayo.

Isiphetho Esinemicu Yabesifazane: Kwenziwe ngokunemba kusetshenziswa ubuchwepheshe be-CNC, namazinga ahlukahlukene entambo atholakalayo ukuze akhethwe.

Imihlahlandlela yokufaka

1. Ukufakwa Kwe-Welded End

Hlanza isiphetho esishiselwe kanye ne-bevel yepayipi. Gcina ukuchezuka kwe-concentricity okungaphansi kuka-0.5mm. Yenza i-root pass welding usebenzisa i-TIG (GTAW) ukuze uqinisekise ukungena okugcwele empandeni yokushisela; ngemva kokugcwalisa i-cap pass, hlola i-weld nganoma iyiphi i-porosity noma i-slag inclusions.

2. Ukufakwa Kokuphela Kwentambo Yesifazane

Qinisekisa ukuthi ingaphezulu lepayipi elinentambo wesilisa lihlanzekile. Phinda ngokufaka owesilisa ekugcineni kwenyunyana enomucu wesifazane. Sebenzisa isikrufu ukuze usiqinise ku-torque eshiwo ejwayelekile; i-gasket yokuvala yangaphakathi izominyanisa ngokuzenzakalelayo ukuze yakhe uphawu olungavuzi.

3. Izinyathelo zokuphepha

Ngesikhathi sokufakwa, vimbela ukushisa okukhiqizwa yi-welding ekudluliseleni endaweni ye-gasket yokuvala. Linda ijoyinti elishiselwe ukuthi liphole ngokuphelele ngaphambi kokwenza noma yimuphi umsebenzi wokuhlanganisa noma wokuqaqa inadi lenyunyana.

Imihlahlandlela Yokunakekela

Ukuhlola Okuvamile: Njalo ezinyangeni eziyisithupha, hlola ilunga lenyunyana ukuze uthole noma yiziphi izimpawu zokuvuza noma ukuxega kwentambo.

I-Gasket Replacement: Uma i-gasket yokuvala ibonisa izimpawu zokuguga noma ukuguga, vele ukhulule inadi lenyunyana ukuze ulishintshe kalula.

Ukugcinwa Kwentambo: Ngemva kokusebenza isikhathi eside, sebenzisa inani elincane lokuthambisa elilwa nokugqwala emicucu.

Ukuhlolwa Kokuphela Okushiselwe: Hlola i-weld seam noma yikuphi ukugqwala noma imifantu; uma izinkinga zitholwa, yenza i-welding yokulungisa ngokushesha.

Isevisi Yesistimu: Lapho okokusebenza kudinga ukuhlakazwa ukuze kulungiswe, mane nje uxegise inadi lenyunyana eliphakathi—asikho isidingo sokusika amapayipi.

Kungani Khetha Shenchi?

1. Ukulawula Ikhwalithi Eqinile

Ukulawulwa kwekhwalithi okuphelele kwenziwa kuyo yonke inqubo, kusukela ekutholeni impahla eluhlaza kuya ekuhlolweni kokugcina. Wonke umkhiqizo oqediwe uthola ukuqinisekiswa okungu-100% kobukhulu kanye nokuhlolwa kokuvuza ngaphambi kokuphuma embonini.

2. Amasevisi Okwenza Ngokwezifiso kwe-OEM/ODM

Sinikezela ngezinsizakalo ezenziwe ngokwezifiso zokulutha, ukupakisha, nokumaka umkhiqizo. Sihlinzeka ngamakhono okuphendula asheshayo ekucacisweni okungajwayelekile kanye nezidingo zezinto ezibalulekile.

3. Amanani Emboni Encintisana Kakhulu

Njengomphakeli osuka embonini oqondile, sinikeza intengo enesaphulelo kanye nezikhuthazo ezisekelwe kumthamo wezinga.

4. Ubambiswano Lwesikhathi Eside, Win-Win

Sizama ngokuzimisela ukusungula ubudlelwano bokubambisana besikhathi eside nabathengisi bezitolo, amafemu onjiniyela, nosonkontileka bamapayipi. V. Izincomo Zomkhiqizo Ezihlobene

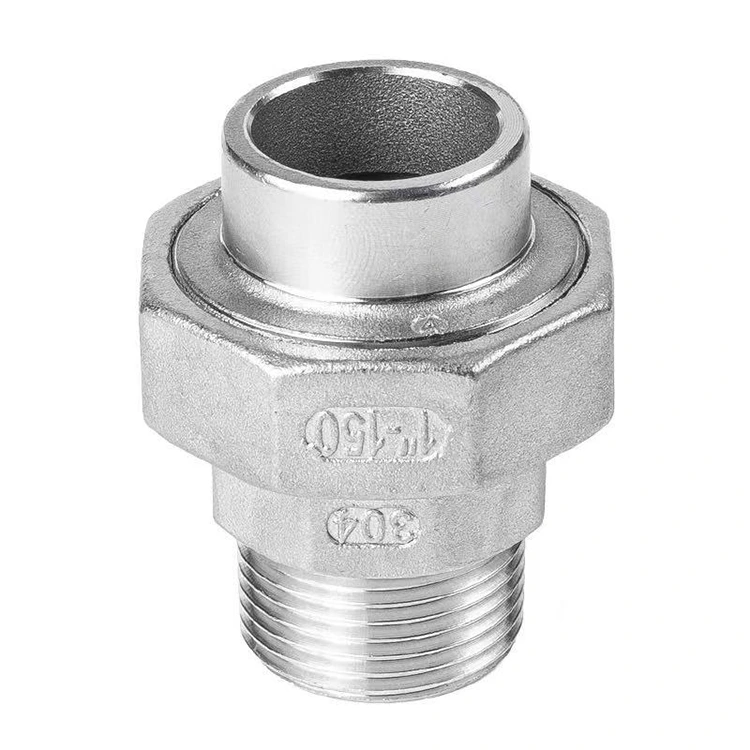

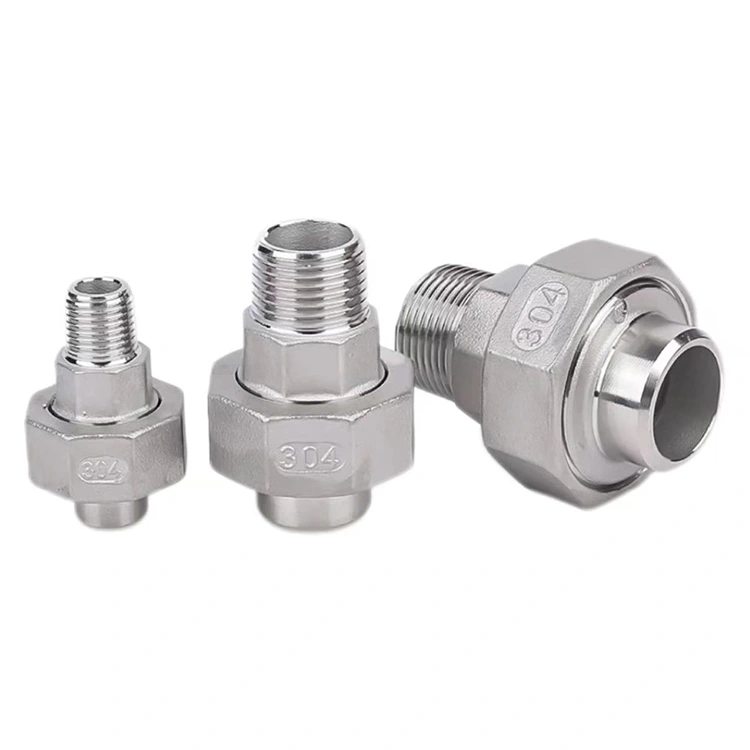

Inkampani yethu futhi ikhiqiza umkhiqizo ohambisanayo ochungechungeni olufanayo: inyunyana enochungechunge lwangaphandle kwelinye kanye nokuxhumana kwe-butt-weld ngakolunye. Esinye isiphetho sisebenzisa intambo yangaphandle ukuze ixhumane nezinto ezifakwa ngaphakathi, kuyilapho enye ihlanganisa ukucushwa kwe-butt-weld. Le mikhiqizo yomibili iyaphelelisana kahle, ibhekana ngokugcwele nezidingo zokuxhuma kuzo zonke izinhlelo zamapayipi afakwe intambo nashiselwe. Simema ngokufudumele amakhasimende amasha nakhona ukuthi abuze futhi afake ama-oda.

Isiphetho

Ukukhetha i-Zhejiang Shenchi Female Thread x Butt-Weld Union—eyenziwe ngokuziqhenya e-China—kusho ukukhetha idizayini emisha, ukusebenza okuthembekile, nokunakekela okulula. Sibheke ngabomvu ukubambisana nabathengisi bezitolo emhlabeni wonke ukuze sakhe ikusasa eliqhakazile ndawonye.
