Ukufakwa kwe-Bulkhead Barbed

I-Shenchi yethula ukufakwa kwekhwalithi ephezulu kwe-Bulkhead Barbed, eklanyelwe ngokukhethekile amapayipi omzila ngamaphaneli wemishini kuyilapho ihlinzeka ngokuvaleka okuthembekile. Kwenziwe ngethusi, i-SUS304, kanye ne-SUS316L yensimbi engagqwali, lezi zifakelo zinikeza ukumelana nokugqwala okuqinile futhi zifanele ububanzi bezimo zokusebenza.

Ukwakheka Komkhiqizo

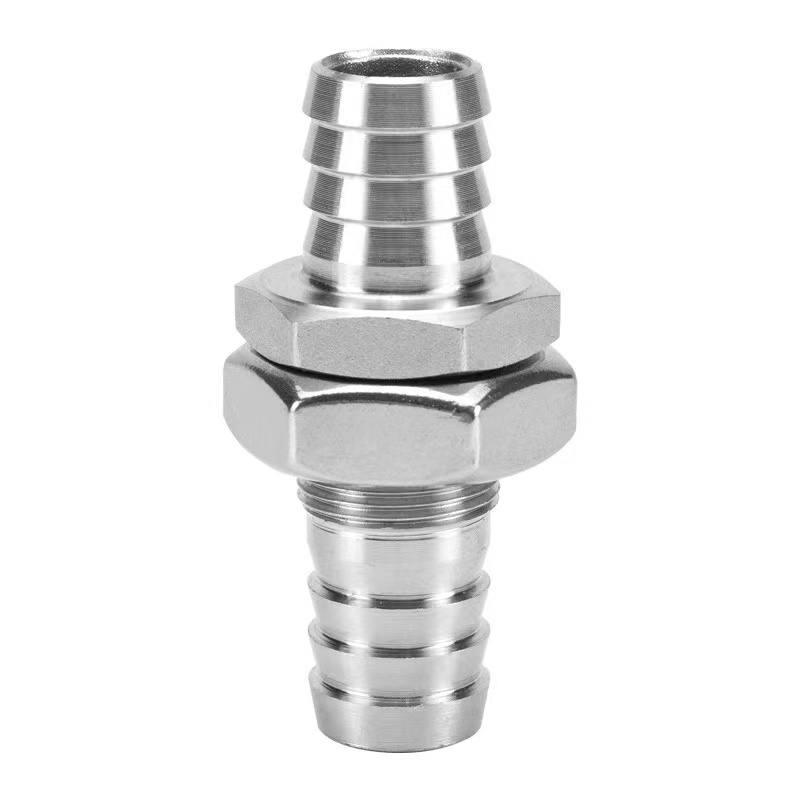

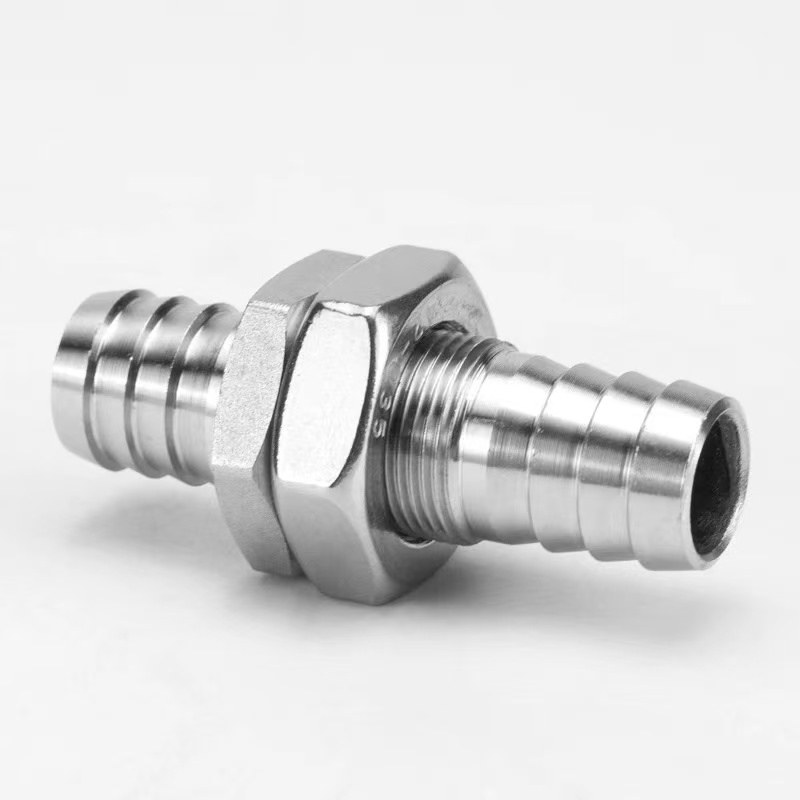

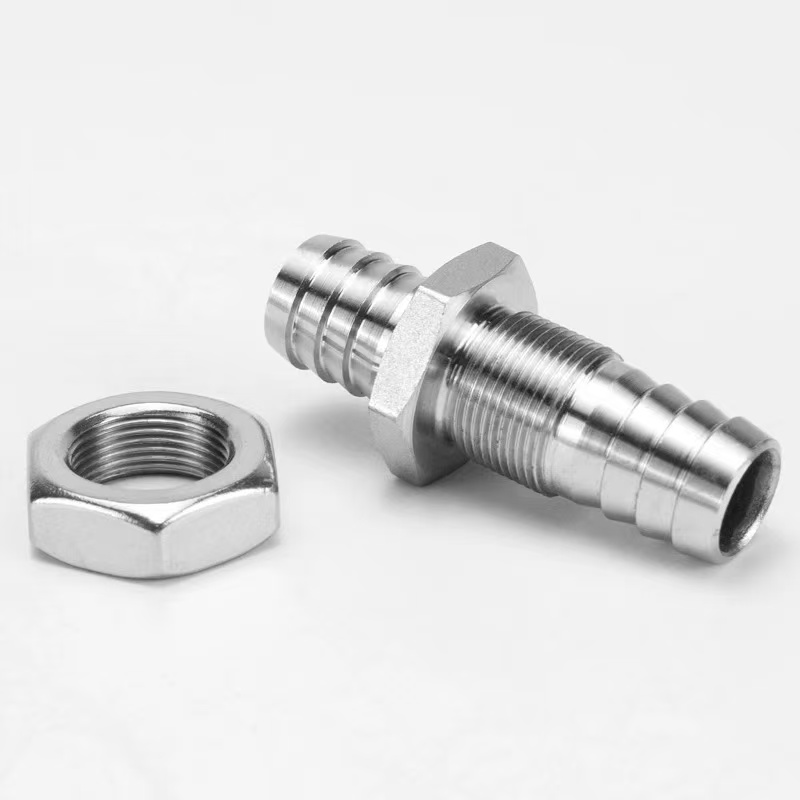

Isakhiwo se-Bulkhead Barbed Fitting sihlanganisa imicu ye-bulkhead, inadi elikhiyayo, nokuxhunywa kwepayipi elinameva. Ngesikhathi sokufakwa, imbobo yephaneli kuphela edingekayo; ukuqinisa i-nati kuqeda inqubo yokulungisa nokufaka uphawu.

Ukuphela kwe-barbed kufaka idizayini ye-anti-slip groove, eqinisekisa ukuxhumana okuphephile uma isetshenziswa nge-hose clamp. Lokhu kufakwa kusetshenziswa kabanzi emakhabetheni okulawula, imishini yokwelapha amanzi, izinsimbi zezokwelapha, nezinye izinkambu ezihlobene.

Imininingwane Yomkhiqizo

Izinzuzo Zesakhiwo

I-Bulkhead Barbed Fitting iyipayipi elifakela ngokukhethekile amapayipi omzila ngokusebenzisa amaphaneli ezinto zokusebenza, izivalo, noma ama-bulkheads kuyilapho ihlinzeka ngokuvaleka okugxilile. Isakhiwo sawo esiyinhloko sihlanganisa ingxenye yentambo ye-bulkhead, inati elikhiyayo, i-gasket yokuvala, kanye noxhumo lwe-hose ene-barbed. Ngesikhathi sokufakwa, imbobo kuphela yobubanzi obuhambisanayo okudingeka yenziwe kuphaneli. Ingxenye yentambo yokufaka idluliswa emgodini, futhi i-nut iqiniswe kusukela ohlangothini oluphambene ukuze kuqedelwe inqubo yokulungisa nokuvala.

1. Isakhiwo Sokulungisa I-Bulkhead:Ubude besigaba somucu bushintshwa ukuze bufane nobukhulu bephaneli evamile. Uma inati lokukhiya seliqinisiwe, lakha ukuqiniswa okuqinile nephaneli, iqinisekisa ukuthi ukufakwa kuhlala kuvikelekile ngisho nangaphansi kwamandla angaphandle okudonsa.

2. Ukuxhunywa Kwepayipi Elinwetshiwe:Olunye uhlangothi noma zombili izinhlangothi zephaneli zifaka amazinyo anameva anameva okufaka ipayipi nokwenza uxhumano oluvaliwe nge- hose clamp. Ukuphela kwe-barbed kusebenzisa idizayini ye-anti-slip groove, enikeza ukumelana okuphezulu kakhulu kokukhipha kunokufakwa okuvamile.

3. Isistimu yokuvala:Ama-gaskets enjoloba noma ama-O-rings anikezwa ezinhlangothini zombili zephaneli. Uma inathi liqiniswa, i-gasket yokuvala iyacindezelwa, ifinyelele ukuvala amanzi futhi iqine uthuli ekuvuleni kwephaneli, ngesilinganiso sokuvikela esingafika ku-IP65 noma ngaphezulu.

Indlela Yokufaka

Ukufakwa kwe-Bulkhead Barbed okuqinile kwe-Shenchi kulula ukukufaka. Uxhumano oluvikelekile noluvaliwe lungatholwa ngezinyathelo eziyisithupha nje:

Isinyathelo 1: Ukulungiselela Imbobo Yephaneli

Yenza imbobo eyindilinga ehambisanayo kuphaneli ngokusekelwe kububanzi obungaphandle besigaba somucu. Qinisekisa ukuthi unqenqema lwembobo lubushelelezi futhi alunabhar ukugwema ukulimaza i-gasket yokuvala.

Isinyathelo sesi-2: Faka i-Seal Gasket

Shelelezisa i-EPDM ehlanganisa i-gasket yokuvala engxenyeni yochungechunge, uyicindezele ngokumelene nesisekelo esifanelekile. Uma ukubekwa uphawu kuyadingeka ezinhlangothini zombili zephaneli, beka i-gasket eyodwa ohlangothini ngalunye.

Isinyathelo sesi-3: Faka Ngephaneli

Faka ingxenye yentambo emgodini ukusuka ohlangothini olulodwa lwephaneli, uqinisekise ukuthi isisekelo esifanelekile sithinta iphaneli nge-gasket yokuvala phakathi.

Isinyathelo sesi-4: Qinisa i-Locking Nut

Khwebula nati lokukhiya engxenyeni yentambo ukusuka kolunye uhlangothi lwephaneli, futhi kancane kancane uliqinise ngesikrufu. I-torque enconyiwe: 5–8 N·m yezinto zethusi kanye ne-8–12 N·m yensimbi engagqwali. Gcina umzimba ofanelekile umile ngesikhathi uqinisa.

Isinyathelo sesi-5: Xhuma iHose

Khetha ukucaciswa lapho ububanzi be-barb obungaphandle bubukhulu ngo-0.5-1 mm kunobubanzi bangaphakathi bepayipi. Faka ipayipi libheke phezulu ekugcineni elinameva lize lifike esisekelweni. Ngezinhlelo zokusebenza ezinomfutho ophezulu, sebenzisa ipayipi lensimbi engagqwali futhi ulibophe phakathi kwebhabhu yesibili neyesithathu.

Isinyathelo 6: Seal Ubuqotho Test

Yenza ukuhlolwa kwengcindezi emile izikhathi ezingu-1.5 zokucindezela kokusebenza. Uma kungekho ukuvuza imizuzu emithathu, ukufakwa kuyafaneleka.
